Pump and filter
Iran Electronic Board Company, as the representative of Hendor Netherlands in Iran, announces its readiness to provide consulting and technical services, utilizing experienced domestic specialists and experts from Hendor, in introducing and offering the best quality filters for various electroplating processes.

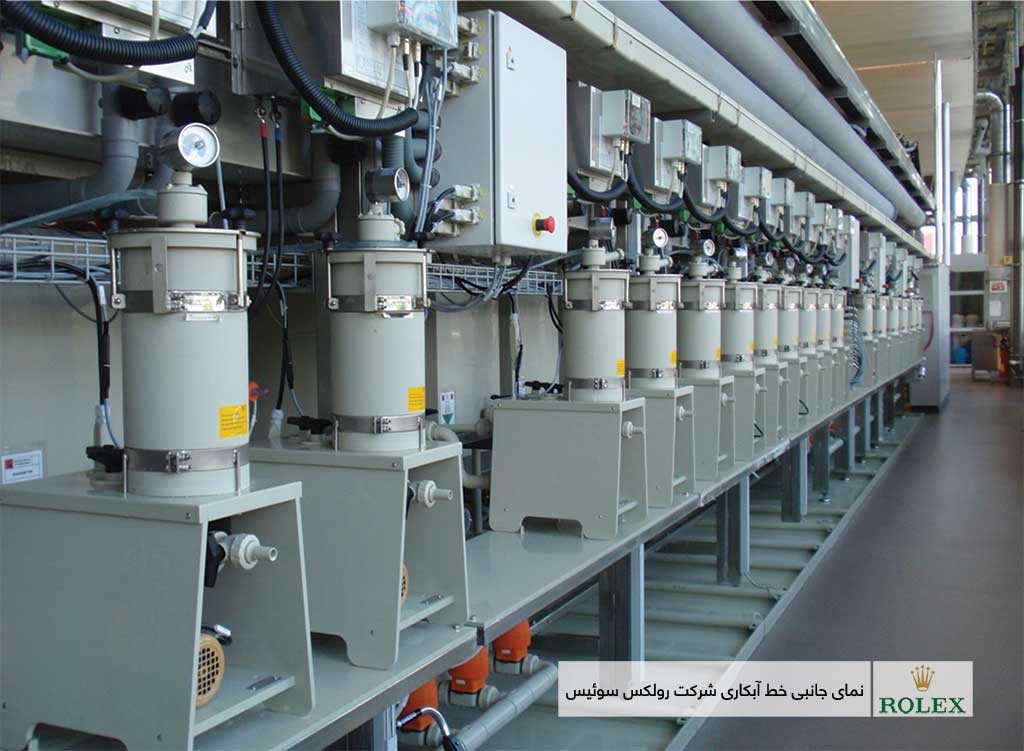

High-quality companies worldwide, such as Rolex Switzerland, use Hendor filters.
Electroplating Filters
Common Uses
Electroplating and Other Chemical Industries
Specifications and Benefits
1- Ability to achieve the highest level of solution filtration, Easy maintenance
2- Magnetic pump or pumps with mechanical seals
3- Ability to use cartridge or disk with paper filter (thick or thin) or fabric made of PP or PVDF materials in all parts
4- Capability to withstand temperatures up to 80 degrees Celsius for PP material and 100 degrees Celsius for PVDF material
5- Option for filter outlet from the top or bottom of the tank
6- Possibility of installing a backup storage tank system for carbon filtering or dissolving materials and solutions
7- Three-phase motor equipped with a current cut-off switch during power fluctuations
8- Equipped with pressure gauge, air vent valve for the tank, and tank drain valve
9- Optional Equipment
10- Choice of pipe or hose connections
11- Pump protection system during dry operation
12- Possibility of installing a solution flow meter
13- Possibility of installing a contact pressure gauge

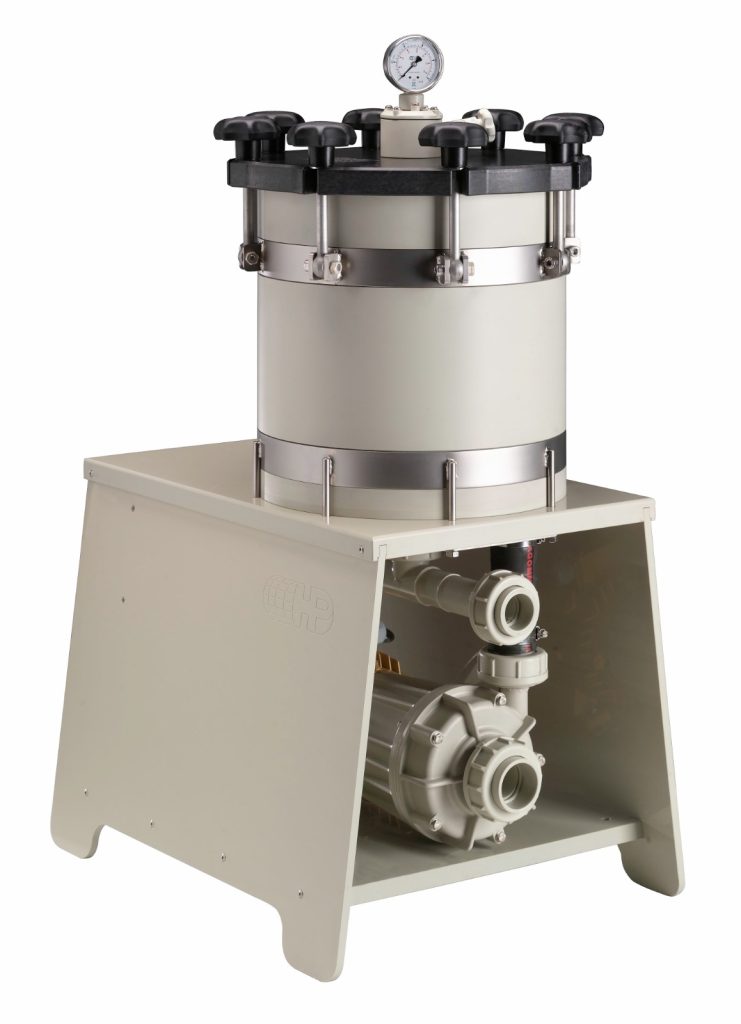

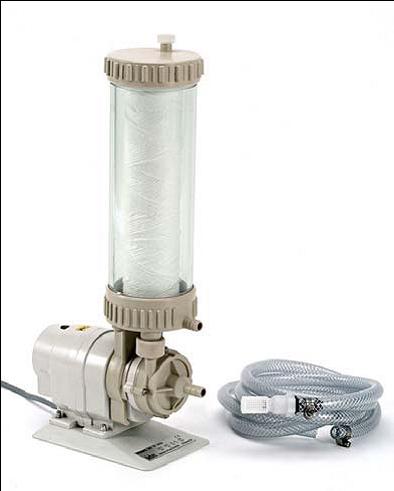

Series 1
Purification Capacity:
1000 – 3000 Liters per Hour
Disk Filter Type, Cartridge
Series 3
Purification Capacity:
3000 – 4000 Liters per Hour
Disk Filter Type, Cartridge

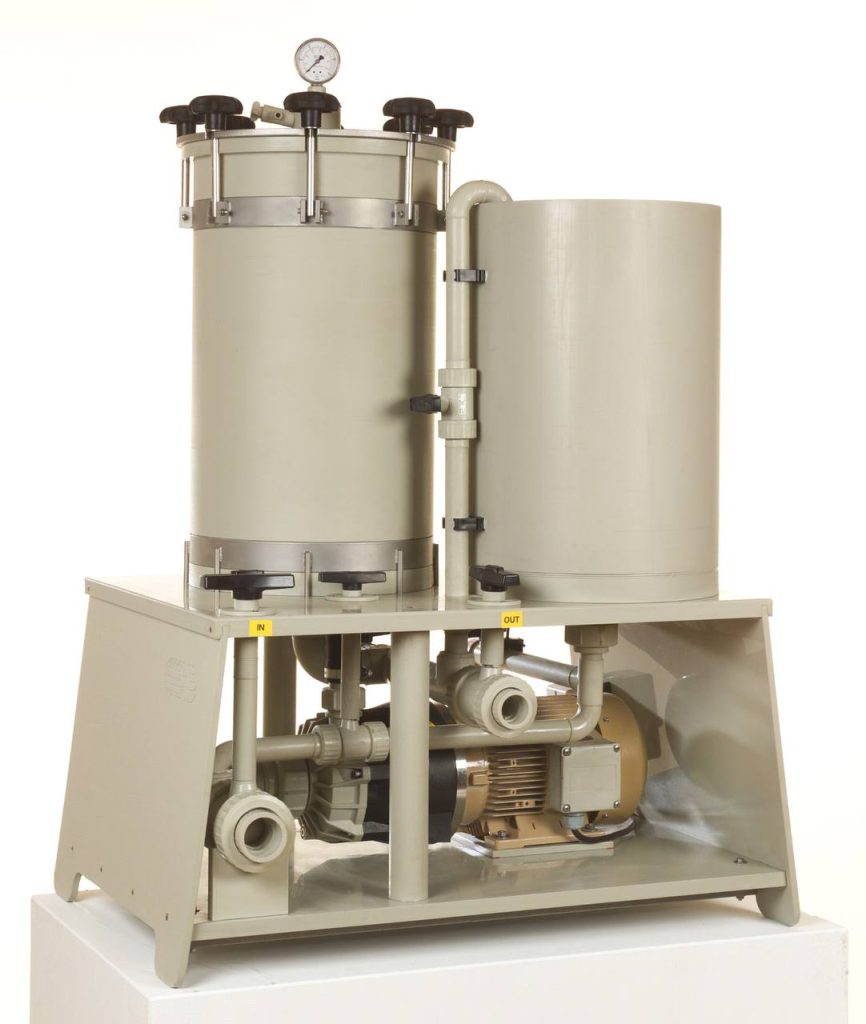

Series 7
Purification Capacity:
5000 – 11000 Liters per Hour
Disk Filter type, Cartridge type
Series 15
Purification Capacity:
10000 – 25000 Liters per Hour
Disk Filter Type, Cartridge
Multi-Purpose Filters
To remove oil and purify tin plating solutions
Purification Capacity: 1000 – 10000 Liters per Hour
Bag Filter Type

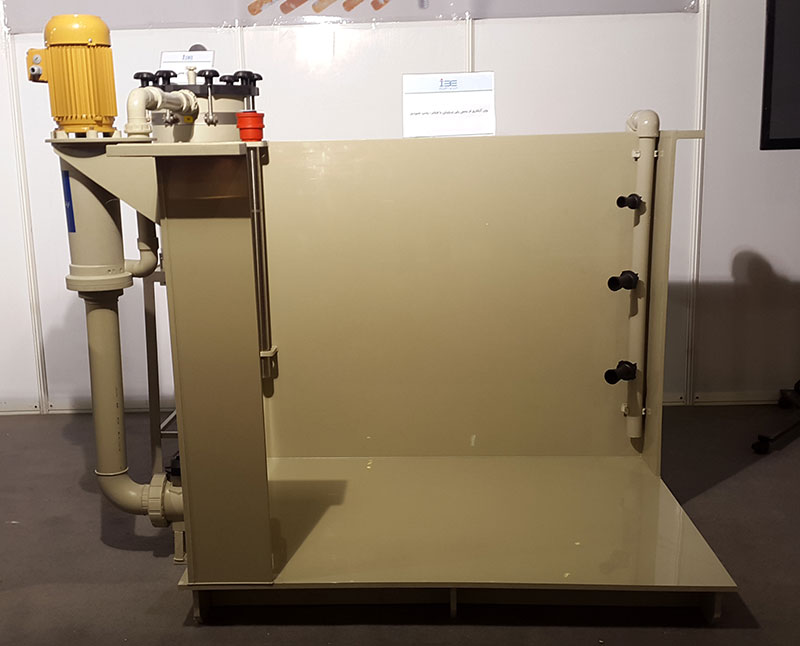

New Filtration System with External Vertical Pump
Iran Board Electronics Company presents a new and exclusive design for plating tank filtration systems with vertical pumps.
The main advantages of this system over conventional systems are increased solution lifespan, zero leakage, higher safety, larger filtration area, greater solution circulation, bottom tank suction, and lower cost.
Precious Metal Recovery Filters
Iran Electronic Board Company presents a new and exclusive design of filtration for electroplating tanks with vertical pumps.

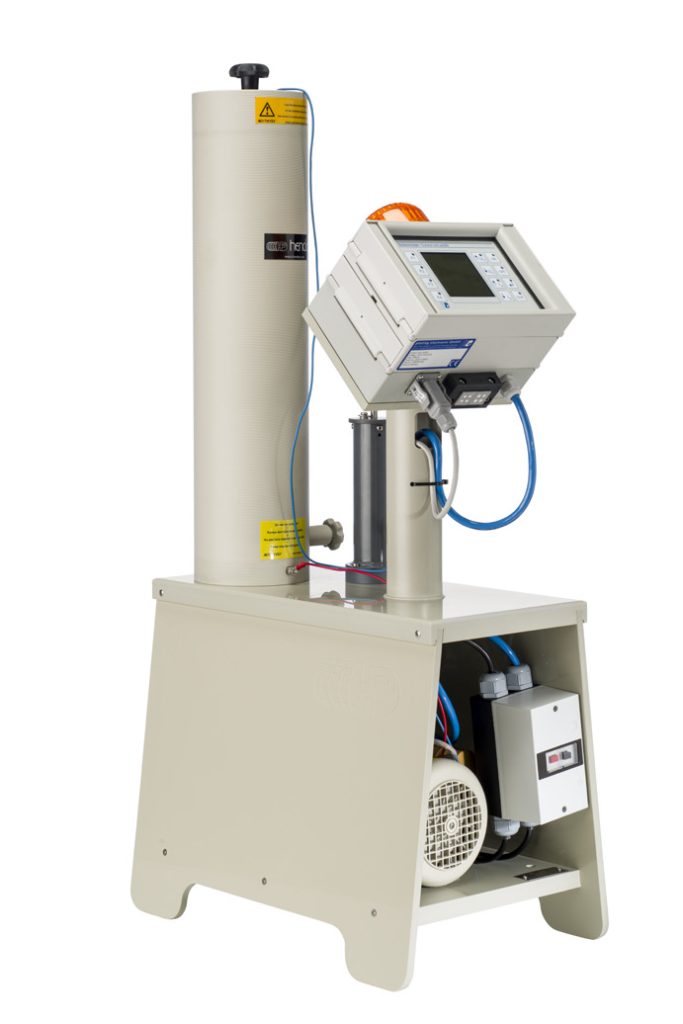

Precious Metal Recovery with Hendor method (HRC): Hendor Company has introduced a unique product to the market for the recovery of precious metals such as gold, silver, rhodium, etc., from electroplating wastewater. Through this method, a high percentage of these metals can be separated from the wastewater.
The advantages of this device include:
1- Low energy consumption cost
2- High separation rate
3- Affordable and disposable cathode
4- High precision in the separation process
5- Simple and cost-effective process
6- Compact size
One of Hendor’s customers was able to recover 7.5 kilograms of silver within 4 weeks using this device.
Types of Pumps

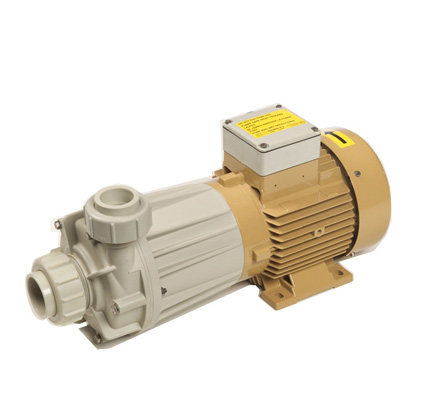

Examples of Horizontal Pumps
Made of PP or PVDF materials

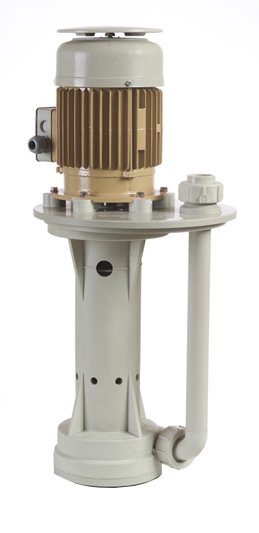

Sample of Vertical Pump
Made of PP or stainless steel PVDF

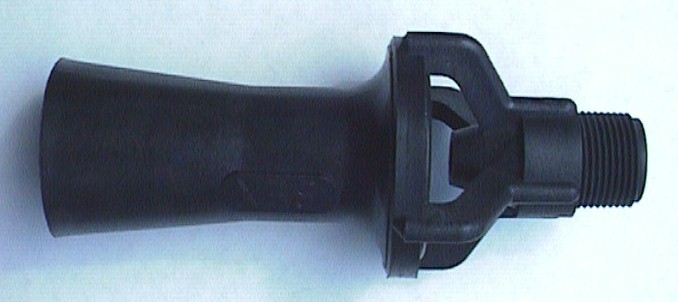

Eductor
The most common method of agitation involves using a blower or compressed air compressor. Air agitation pipes are placed at the bottom of electroplating tanks. These pipes are made of PVC, stainless steel, or titanium. Recently, the use of an eductor has also become prevalent in agitation of electroplating solutions. Its function is to increase the flow rate of the solution when it returns from the pump filter to the tank or by a pump alone. This is achieved by directing the solution into the nozzle of the eductor at a high speed, creating an additional flow of solution around the eductor. This induced flow adds to the pumped solution and increases its volume by 5 times. The source of the pumped solution can be from a pump or the outlet pipe of the filter.
Types of filters and filter cartridges made from thin and thick paper, activated carbon paper, fabric filters, and PP yarn filters with various mesh sizes
